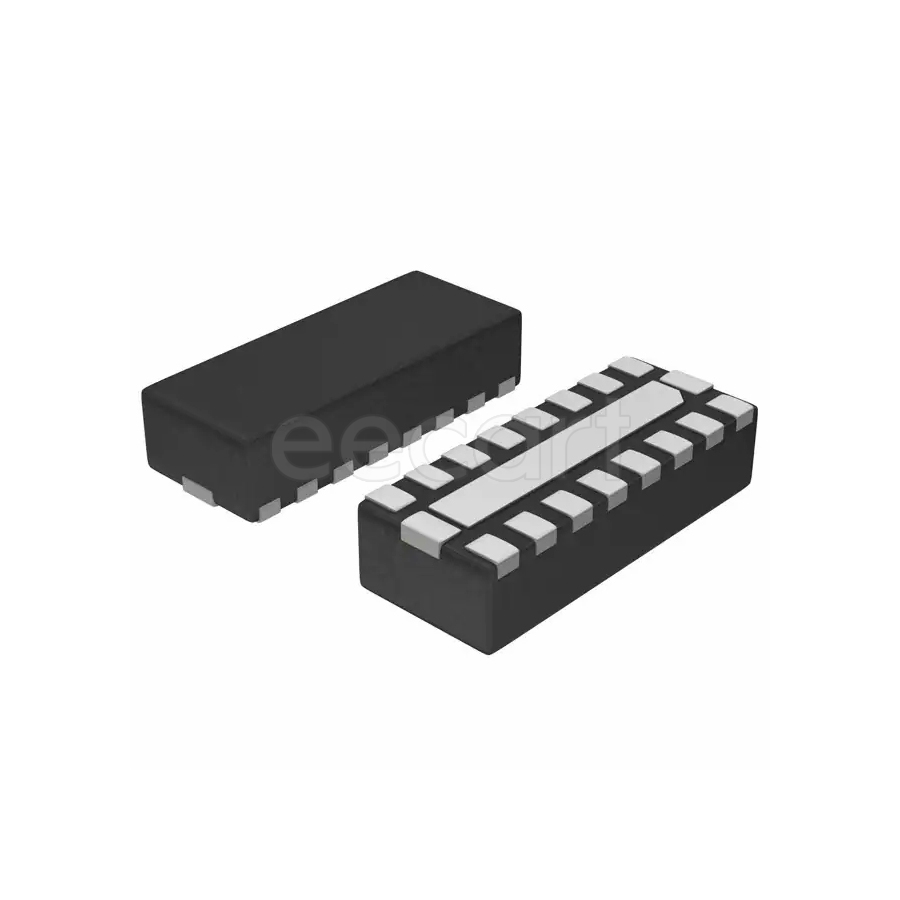

NUF8402MNT4G
Manufacturer:
On Semiconductor
Mfr.Part #:
NUF8402MNT4G
Datasheet:
Description:
EMI / RFI Filters DFN-16 SMD/SMT RC (Pi) 2nd 105 MHz 17 pF 35 dB 100 Ω
| Parameter | Value |
|---|---|
| Capacitance | 17 pF |
| Length | 4 mm |
| Width | 1.6 mm |
| Termination | Flat |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 16 |
| Resistance | 100 Ω |
| Height | 990.6 µm |
| Circuit Type | Filter |
| Depth | 1.6 mm |
| Halogen Free | Halogen Free |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Frequency | 2.2 GHz |
| Number of Elements | 16 |
| DC Resistance (DCR) | 115 Ω |
| Test Frequency | 105 MHz |
| Shielding | Unshielded |
| Number of Channels | 8 |
| Number of Lines | 8 |
| Max DC Current | 100 nA |
| ESD Protection | Yes |
| Max Breakdown Voltage | 8 V |
| Attenuation Value | 35 dB |
| Chemistry/Technology | RC (Pi) |
| Schedule B | 8541100050 |
| Cutoff Frequency | 105 MHz |
| Filter Order | 2nd |
| Packaging | Reel |
| RoHS | Compliant |
| Channel Resistance | 100 Ω |
Stock: 11701
Distributors
pcbx
pcbxUnit Price$0.35052
Ext.Price$0.35052
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.35052 | $0.35052 |
| 10 | $0.24879 | $2.48790 |
| 25 | $0.23745 | $5.93625 |
| 50 | $0.22663 | $11.33150 |
| 100 | $0.21630 | $21.63000 |
| 300 | $0.20935 | $62.80500 |
| 500 | $0.20262 | $101.31000 |
| 1000 | $0.18980 | $189.80000 |
| 3000 | $0.17227 | $516.81000 |
| 5000 | $0.15636 | $781.80000 |
| 10000 | $0.14192 | $1419.20000 |
